PT-RZ12K 雷射高階工程投影機(圖)
PT-RZ12K
PT-RZ12K 雷射高階工程投影機
12000流明,將雷射投影提升到一個全新的水平
  1. 3片DLP
  2. 12000流明
  3. 雙雷射光引擎
  4. 對比度20,000:1
  5. 120Hz畫面更新率
  6. 支援360度安裝
  7. 可另選購各焦段鏡頭
  8. WUXGA 解析度
前往購買
歡迎來電 03-4222385 洽詢

具有雷射效率的參考圖

來自 3-Chip DLP™ SOLID SHINE 雷射器的明亮生動的圖像質量



精確的色彩再現

降低總擁有成本

雙雷射光學引擎確保故障安全可靠性

防塵光學元件延長使用壽命

高效冷卻系統提高可靠性

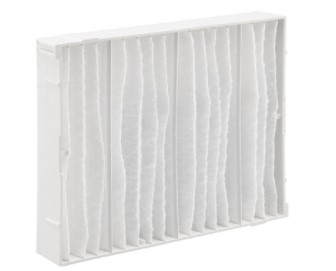

環保過濾器將更換週期延長至 20,000 小時

高圖像質量和可靠性

輕量化設計輸出高亮度



120 Hz 真實運動處理器可減少運動模糊



細節清晰度處理器 5

20,000:1 對比度的動態對比度功能

系統日光視圖 3

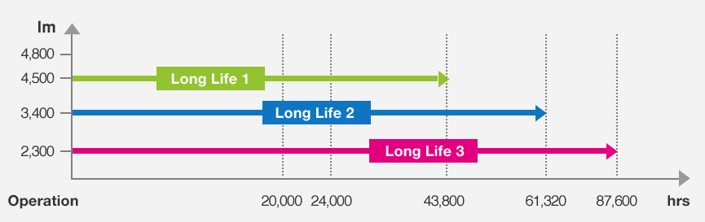

連續運行的長壽命模式

安裝靈活,功能強大

  免費 360 度安裝

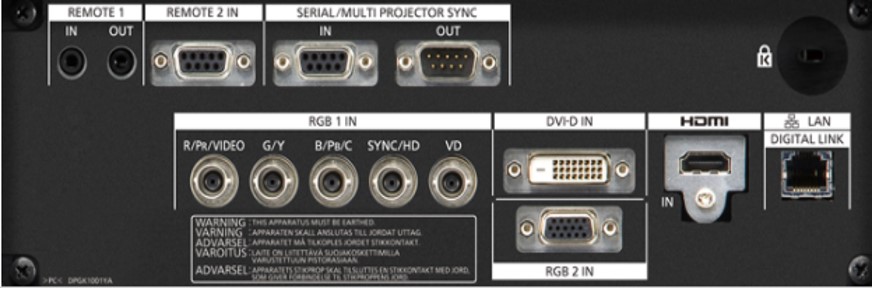

搭載DIGITAL LINK端子

備份輸入設置保證圖片顯示

Geometry Manager Pro 和升級套件

3D投影能力

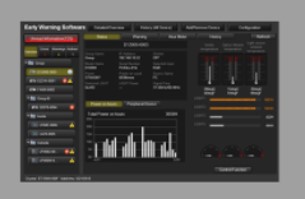

預警軟體ET-SWA100系列(可選)

Panasonic 3-Chip DLP™ 投影機的通用鏡頭



※本產品內容皆出於Panasonic官方網站,如有變更請以Panasonic原廠官網為主.

※本網站所提供產品規格內容如有變更,恕不另行通知。實際請以Panasonic官方最新公告資訊為主。
機型
PT-RZ12K

Power supply

100–240 V AC, 50/60 Hz

Power consumption*1

1,200 W (1,280 VA) (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal);
Average power consumption: 800 W (Normal Mode), 680 W (Eco Mode), 620 W (Long Life 1 Mode), 590 W (Long Life 2 Mode), 550 W (Long Life 3 Mode)

DLP™ chip

Panel size

24.4 mm (0.96˝) diagonal (16:10 aspect ratio

Display method

DLP™ chip x 3, DLP™ projection system

Pixels

2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels

Refresh rate

120 Hz*3

Lens

Optional powered zoom and fixed-focus lenses

Light source

Laser diode (Class 1), Light source life*4:
20,000 hours (Normal Mode) / 24,000 hours (Eco Mode)

Screen size (diagonal)

1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝)
with the ET-D75LE8, 3.05-15.24 m (120–600˝)
with the ET-D75LE90, 16:10 aspect ratio

Brightness*5

12,000 lm

Contrast*5

20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3)

Resolution

1920 x 1200 pixels*6

Supported RGB signal

XGA–WUXGA

Supported video signal

NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i

Optical axis shift*7
(from center of screen)

Vertical

±55 % (±44 % with the ET-D75LE6, +73 – +78 % with the ET-D75LE90) (powered)

Horizontal

±20 % (±15 % with the ET-D75LE6, ±6 % with the ET-D75LE90) (powered)

Keystone correction range*9

Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90)

Keystone correction range with optional Upgrade Kit ET-UK20*9

Vertical: ±45° (±40° with ET-D75LE10/ET-D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE50/ET-D75LE6, 0° with ET-D75LE90)

Installation

Ceiling/floor, front /rear, free 360-degree installation

Cabinet materials

Molded plastic

Dimensions (W x H x D)

578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included), 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝)
(Including legs at shortest position and protruding parts)

Weight*10

Approx. 44.0 kg (97 lbs) (optional lens not included)

Operation noise*5

43 dB

Operating environment

Operating temperature: 0–50 °C (32–122 °F)*11,

operating humidity: 10-–80 % (no condensation)

Applicable software

Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)

TerminalsPT-RZ12K/
PT-RS11K

  *1 Operating temperature: 25 °C (77 °F), altitude: 700 m (22 ft 12 in), ICE627087: 2008 Broadcast Content, Image Mode: Dynamic, Dynamic Contrast Mode: 3.

 *2 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Additionally, only certain commands can be received for external control using the serial terminal.

*3 Refresh rate varies depending on scanning frequency.

 *4 At this time the brightness will have decreased to approximately half of its original level. Operating Temperature: 35 °C (95 °F), Altitude 700 m (22 ft 12 in), Dust: 0.15 mg/m3.

 *5 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*6 Input signals that exceed the native resolution will be converted to the native resolution.

*7 Optical axis shift function cannot be operated when used with the ET-D75LE50.

*8 Optical axis shift function cannot be operated when used with the ET-D75LE50/ET-D75LE90.

*9 Range varies depending on mounted lens.

 *10 Average value. May differ depending on the actual unit.

 *11 When operational mode is set to Normal, operating temperature is from 0 °C (32 °F) to 50 °C (122 °F), and operating temperature is from 0 °C (32 °F) to 45 °C, (113 °F) when used in locations from 1,400 m to 4,200 m (4,593 ft to 13,780 ft) above sea level. When operational mode is set to Eco or Long Life 1/2/3, operating temperature is from 0 °C (32 °F) to 45 °C (113 °F). When used with Smoke Cut Filter, operating temperature is from 0 °C (32 °F) to 40 °C (104 °F). Projector cannot be used in locations over 2,700 m (8,858 ft) with operational mode set to Eco or Long Life 1/2/3. When used with Smoke Cut Filter, the projector cannot be used in locations over 1,400 m (4,593 ft). Light source brightness may decrease depending on operating temperature. When projector is operating at high temperature, brightness will decrease correspondingly.

                                          ♦ 選購鏡頭系列

                                           ►以鏡頭數據僅供參考,實際請以各廠牌官方所公布的資料為主
