即使在惡劣條件下也可靠
※本產品內容皆出於Panasonic官方網站,如有變更請以Panasonic原廠官網為主.
機型 | PT-RZ990 | |
---|---|---|
Projector type | 1-Chip DLP™ projector | |
DLPTM chip | ||
Panel size | 17.0 mm (0.67 in) diagonal (16:10 aspect ratio) | |
Display method | DLP™ chip x 1, DLP™ projection system | |
Number of pixels | 2,304,000 (1920 x 1200 pixels) | |
Light source | Laser diodes | |
Light output | 9,400 lm (Normal)*1/10,000 lm (Center)*2 7,500 lm (Eco)*1/8,000 lm (Quiet 1)*1/6,000 lm (Quiet 2)*1 3,700 lm (Long Life 1)*1/3,100 lm (Long Life 2)*1/2,500 lm (Long Life 3)*1 | |
Time until light output declines to 50 %*3 | 20,000 hours (Normal/Quiet 1/Quiet 2)/24,000 hours (Eco) | |
Resolution | 1920 x 1200 pixels | |
Contrast ratio*1 | 10,000:1 (Full On/Full Off, Dynamic Contrast [3]) | |
Screen size (diagonal) | 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, | |
Center-to-corner zone ratio*1 | 90 % | |
Lens | PT-RZ990/RZ890: Powered zoom (throw ratio 1.71–2.41:1), powered focus F 1.7–1.9, f 25.6–35.7 mm PT-RZ990L/RZ890L: Optional powered zoom/focus lenses | |
Lens shift*4 (From the origin point of the lens mounter) | ||
Vertical | +50 %, -16 % (+40 %, -16 % with ET-DLE060) (powered) | |
Horizontal | +30 %, -10 % (+10 %, -20 % with ET-DLE020, +19 %, -10 % with ET-DLE060, +28 %, -10 % with ET-DLE105/ET-DLE085) (powered) | |
Keystone correction range | Vertical: ±40 ° (±5 ° with ET-DLE020, ±16 ° with ET-DLE060, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055, +5 ° with ET-DLE035), Horizontal: ±15 ° (±10 ° with ET-DLE060) (cannot be operated with ET-DLE035/ET-DLE020) | |
Keystone correction range with optional ET-UK20 Upgrade Kit | Vertical: ±45 ° (±16 ° with ET-DLE060, ±40 ° with ET-DLE150/ET-DLE250/ET-DLE170, ±22 ° with ET-DLE105/ET-DLE085/ET-DLE055), Horizontal: ±40 ° (±10 ° with ET-DLE060, ±15 ° with ET-DLE105/ET-DLE085/ET-DLE055) | |
Installation | Ceiling/floor, front/rear, free 360-degree installation | |
Terminals | ||
SDI IN | BNC x 1: 3G/HD/SD-SDI input | |
HDMI IN | HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*5) | |
DVI-D IN | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) | |
RGB 1 IN | RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR | |
RGB 2 IN | D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR | |
SERIAL/MULTI PROJECTOR SYNC IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
SERIAL/MULTI PROJECTOR SYNC OUT | D-sub 9-pin (male) x 1 for link control | |
REMOTE 1 IN | M3 x 1 for wired remote control | |
REMOTE 1 OUT | M3 x 1 for link control (for wired remote control) | |
REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) | |
DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible, 4K/60p signal input*5 | |
LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible | |
Power supply | AC 100–240 V, 50/60 Hz | |
Power consumption | 735 W (Normal)/575 W (Eco)/490 W (Quiet 1)/365 W (Quiet 2) 265 W (Long Life 1)/235 W (Long Life 2)/205 W (Long Life 3) | |
Cabinet materials | Molded plastic | |
Operation noise*1 | 40 dB (Normal) / 36 dB (Quiet1) / 35 dB (Quiet2) | |
Dimensions (W x H x D) | PT-RZ990/RZ890: 498 x 200*6 x 581 mm (19 19/32˝ x 7 7/8˝*6 x 22 7/8˝) (with supplied lens) | |
Weight*7 | PT-RZ990/RZ890: Approx. 23.0 kg (50.7 lbs) (with supplied lens) PT-RZ990L/RZ890L: Approx. 22.2 kg (48.9 lbs) (without lens) | |
Operating environment | Operating temperature: 0–45 °C (32–113 °F)*8, operating humidity: 10–80 % (no condensation) | |

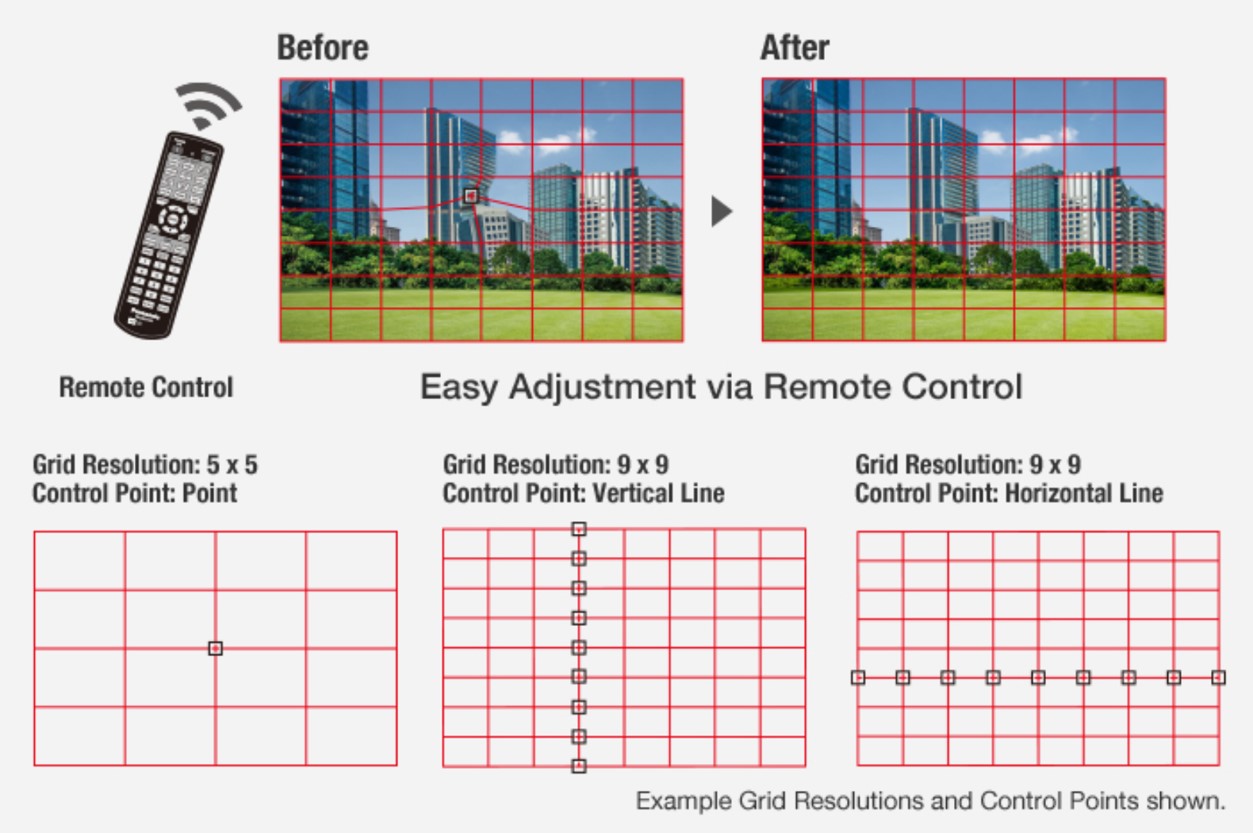

Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™ |
鏡頭型號 | 投射比 |
ET-DLE020 | 0.28~0.299 |
ET-DLE035 | 0.38 |
ET-DLE055 | 0.785 |
ET-DLE060 | 0.6~0.801 |
ET-DLE085 | 0.782~0.977 |
ET-DLE105 | 0.978~1.32 |
ET-DLE150 | 1.3~1.89 |
ET-DLE170 | 1.71~2.41 |
ET-DLE250 | 2.27~3.62 |
ET-DLE350 | 3.58~5.45 |
ET-DLE450 | 5.36~8.58 |
