- 亮度 (Typ.)：400 cd /m²（APL 25％，不含玻璃）

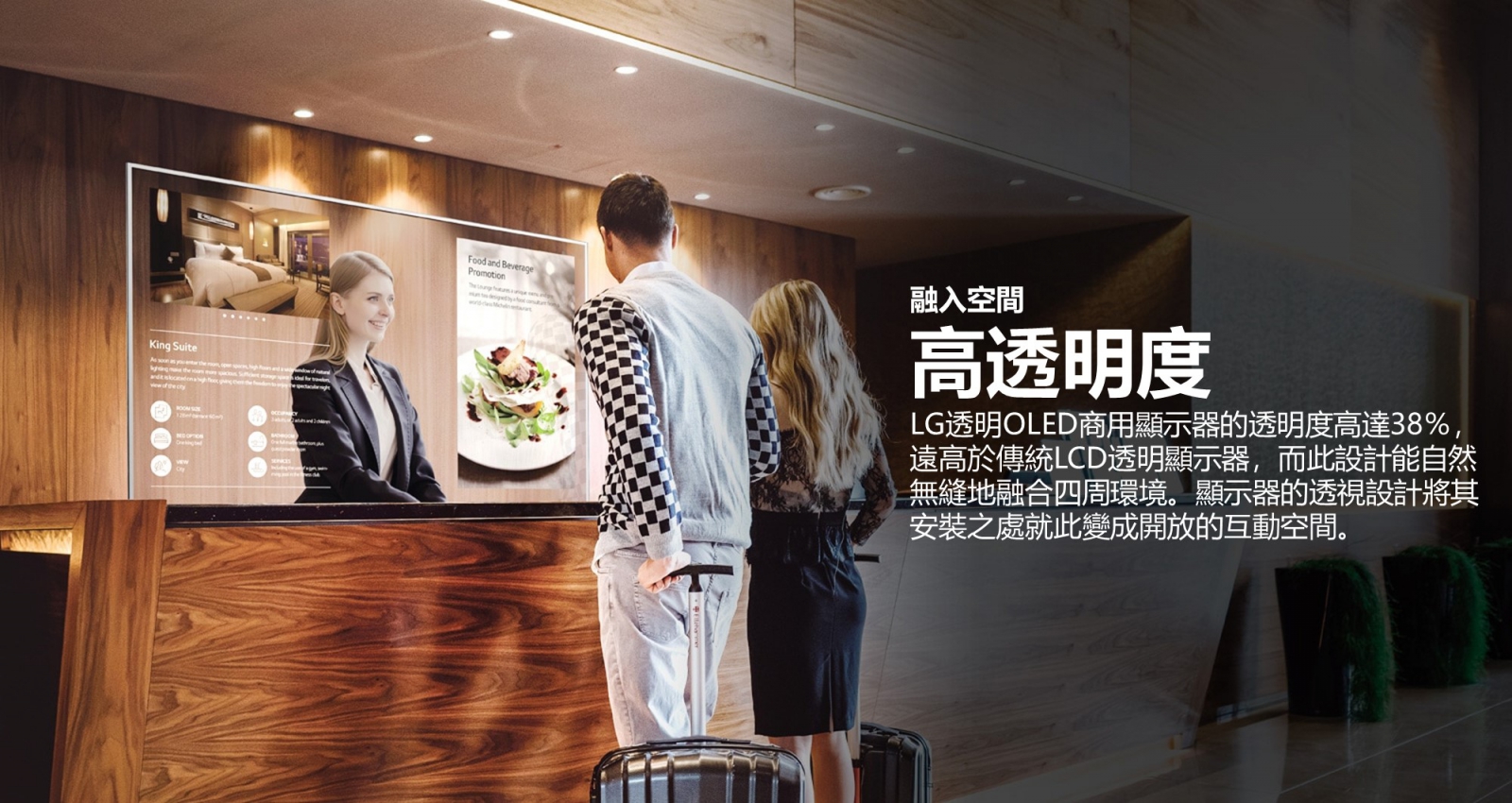

- 透明度（Typ.）：38%（面板）
- 邊框：7.9 mm (T/B/L), 121.7 mm (B)
- 介面：HDMI/DP/USB(2)/RS232C/RJ45/音訊/IR

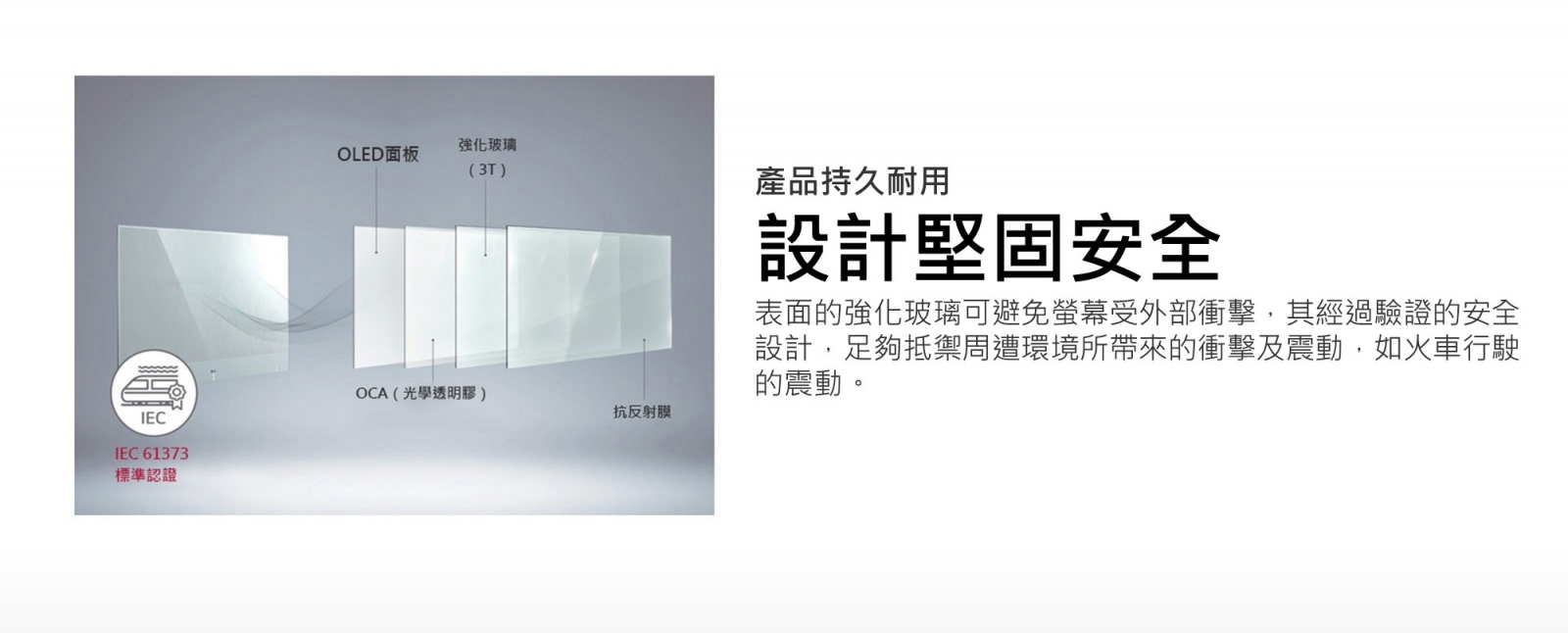

- IEC 61373 標準認證
※本網站所提供產品規格內容如有變更，恕不另行通知。實際請以LG官方最新公告資訊為主。
| 機型 | 55EW5F-A | |
|---|---|---|
| PANEL | ||
| Screen Size | 55" | |
| Native Resolution | 1,920 x 1,080 (FHD) | |
| Brightness (Typ., cd/m², APL 25%, without Glass) | 400 | |
| Brightness (Typ., cd/m², APL 100%, without Glass) | 150 | |
| Transparency (Typ.) | 38% (Panel) | |
| CONNECTIVITY | ||
| Input | HDMI, DP, USB (2) | |
| Output | DP, Audio | |
| External Control | RS232C In/out, RJ45 (LAN) In/out, IR In | |
| MECHANICAL SPECIFICATION | ||
| Bezel Width | 7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B) | |
| Monitor Dimension (W × H × D) | (Head) 1,225.53 x 810.1 x 6.6 mm | |
| Weight | (Head) 13.9 kg | |
| Carton Dimensions (W × H × D) | 1,329 x 898 x 191 mm | |
| Packed Weight | 22.4 kg | |
| ENVIRONMENT CONDITIONS
| ||
| Operation Temperature | 0°C to 40°C | |
| Operation Humidity | 10 % to 80 % | |
| POWER | ||
| Power Supply | 100-240V~, 50/60Hz | |
| Power Type | Built-In Power | |
| POWER CONSUMPTION | ||
| Typ. | 309 W *8 color bar | |
| Max. | 318 W *8 color bar | |
| CERTIFICATION | ||
| Safety | CB / NRTL | |
| EMC | FCC Class "A" / CE / KC | |
| ErP / Energy Star | Yes (EU Only) / No | |
| MEDIA PLAYER COMPATIBILITY | ||
| OPS type compatible | No | |
| SOFTWARE COMPATIBILITY | ||
| Content Management Software | SuperSign CMS | |
| Control and Monitoring Software | SuperSign Control / Control+ | |
| ACCESSORY | ||
| Basic | Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(1,600mmx4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, RS232 Cable(4P-4P), LC Cable(VLC), Tapes, Screws, Shield Cover Ass'y, Rubber Dampers | |
