86UH5F-H  UH5F 系列(圖)
86UH5F-H
86UH5F-H UH5F 系列

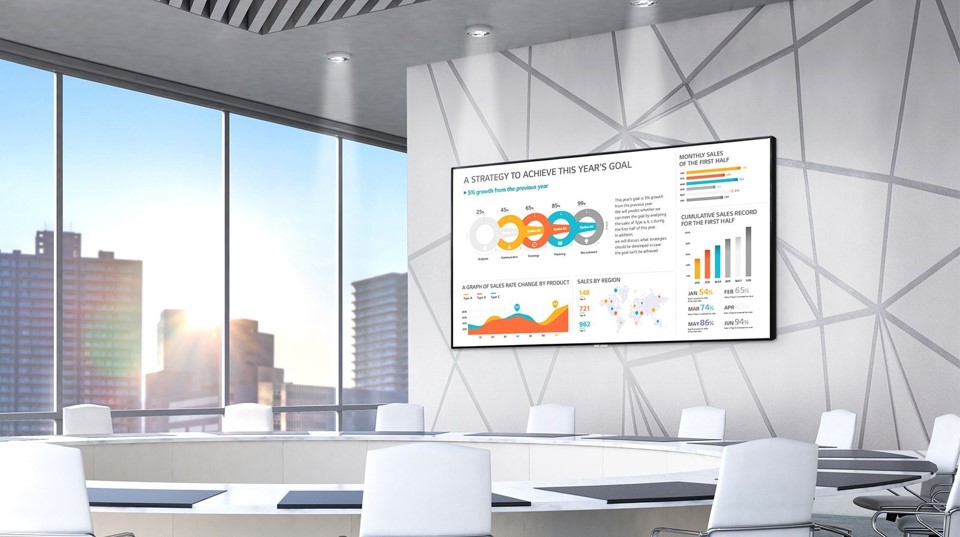

LG UHD 顯示器 引人注目的焦點
  1. 亮度 (Typ.):500 cd/m²
  2. 表面處理(霧度):28%
  3. 邊框: 14.3 mm(均等)
  4. 深度:60.6 mm(不包含把手)
  5. 介面:HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/音訊/IR
  6. 內建喇叭和可拆式Logo
前往購買
歡迎來電 03-4222385 洽詢

*使用 HDMI 纜線連接

* 「signage 365 Care」服務的可用性因地區而異,因此請聯絡所在地區的 LG 銷售代表,瞭解更多詳細資訊。



※本網站所提供產品規格內容如有變更,恕不另行通知。實際請以LG官方最新公告資訊為主。

機型

86UH5F-H

PANEL

Screen Size

86"

Panel Technology

IPS

Native Resolution

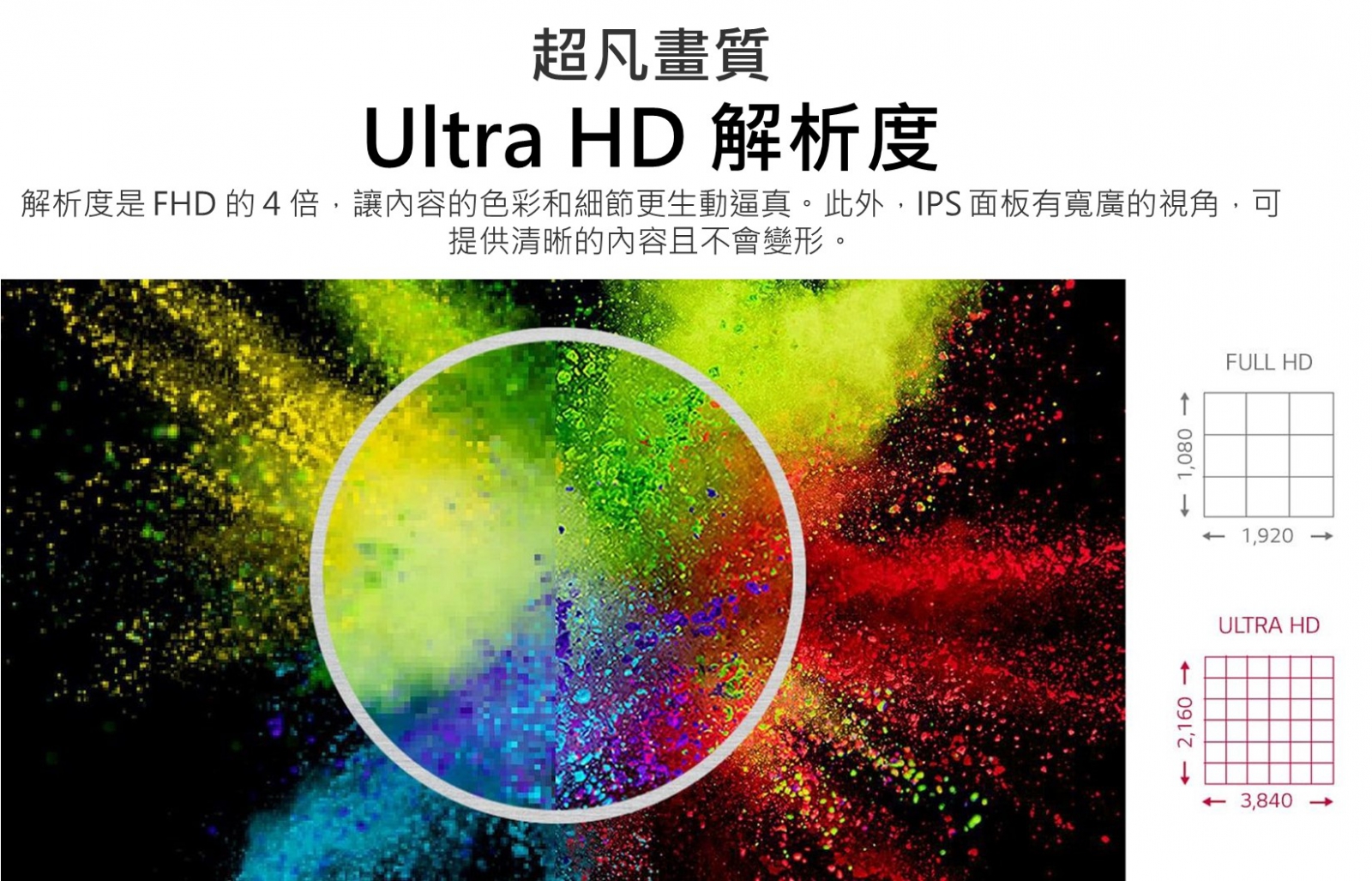

3,840 x 2,160 (UHD)

Brightness (Typ.)

500

Contrast Ratio

1,100:1

Dynamic CR

1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.

Color gamut

NTSC 72%

Viewing Angle (H x V)

178 x 178

Color Depth

1.07 Billion Colors (10 bit)

Response Time

8ms(G to G)

Surface Treatment (Haze)

Haze 28%

Operation Hours (Hours / Day)

24 / 7

Portrait / Landscape

Yes / Yes

CONNECTIVITY

Input

HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)

Output

DP, Audio

External Control

RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

14.3 mm (Even Bezel)

Weight (Head)

49 kg

Monitor Dimension (W × H × D)

1,926.2 × 1,097.2 × 60.6 mm (Without Handle and LG Logo)

Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

SPECIAL FEATURE

Overlay Touch Compatibility

No

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

215 W / 280 W

BTU (British Thermal Unit)

733.69 BTU/Hr(Typ.),
955.5 BTU/Hr(Max)

SOUND

Speaker

Yes

CERTIFICATION

Safety

CB, NRTL

EMC

FCC Class "A" / CE / KC

ErP

Yes

OPS COMPATIBILITY

OPS Type Compatible

Yes

OPS Power Built In

Yes

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes

SuperSign WB

Yes

SuperSign Media Editor

Yes

Signage365Care

Yes (The availability can differ by region.)

ACCESSORY

Basic

Remote Controller, Power Cord, QSG, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender

Optional

OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)

GENERAL

Region

Global
