※本網站所提供產品規格內容如有變更，恕不另行通知。實際請以LG官方網站最新公告資訊為主。
| 廠牌 型號 | LG 55EF5G-L 曲面OLED顯示器 | |
|---|---|---|
| PANEL | ||
| Screen Size | 55" | |
| Native Resolution | 1,920 x 1,080 (FHD) | |
| Contrast Ratio | 150,000 : 1 | |
| Viewing Angle (H x V) | 178 × 178 | |
| Response Time | 1ms (G to G), 8ms (MPRT) | |
| Operation Hours (Hours/Day) | 18/7 (Moving Content Only) | |
| Panel Technology | OLED | |
| Brightness | 150/400nit (APL 100%/25%) | |
| Color gamut | BT709 120% | |
| Color Depth | 10bit(R), 1.07Bilion colors | |
| Surface Treatment(Haze) | Hard coating (2H) Reflectance Typ. 1.2% | |
| Portrait / Landscape | Yes / Yes | |
| CONNECTIVITY | ||
| Input - Digital - HDMI | Yes (1), HDCP1.4 | |
| Input - RS232C IN | Yes (1) | |
| Input - IR IN | Yes (1), External IR Receiver | |
| output - DP Out | Yes (1) | |
| output - RS232C OUT | Yes (1) (w/ IR out) | |
| Input - Digital - DP | Yes (1), HDCP1.3 | |

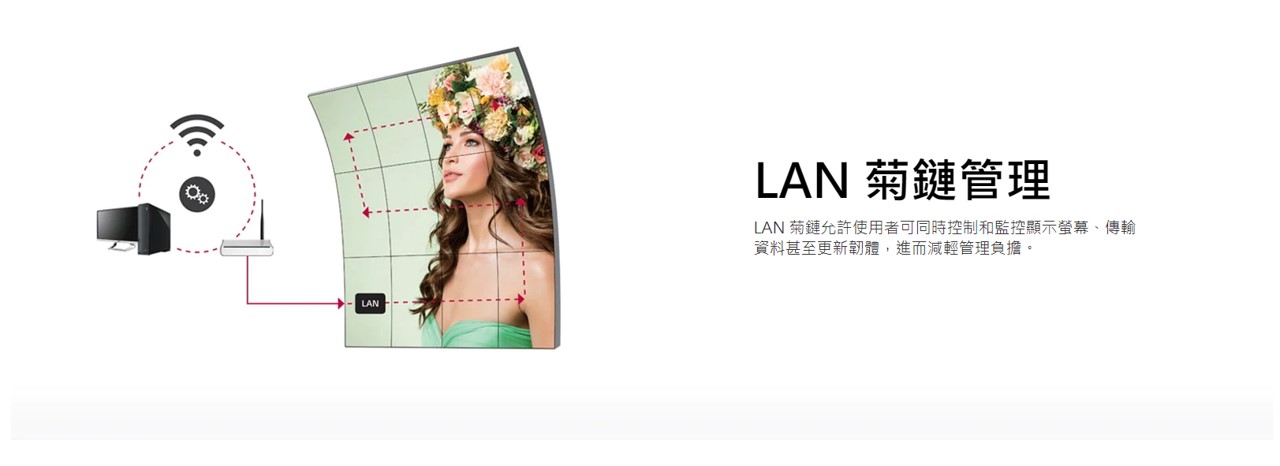

| Input - RJ45(LAN) | Yes (1) | |
| Input - USB | USB2.0 Type A(2) | |
| output - Audio Out | Yes (1) | |
| output - RJ45(LAN) | Yes (1) | |
| MECHANICAL SPECIFICATION | ||
| Bezel Color | Black | |
| Weight (Head) | 5.8Kg (LandScape, Head) 7.0Kg (Portrait, Head) 3.5Kg (Signage Box) | |
| Bezel Width | T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel) T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel) T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel) T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel) | |
| Monitor Dimension (W x H x D) | 1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut) 701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut) 1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut) 701.4 x 1219.7 x 12.4mm (Landscape, Head, w/o Pemnut) 413 x 353 x 57.3mm (Signage Box) | |
| KEY FEATURE | ||
| HW - Internal Memory | 16 GB | |
| HW - FAN | Yes | |
| SW - Embedded CMS - Local Contents Scheduling | Yes | |
| SW - USB Plug & Play | Yes | |
| SW - Sync Mode - RS-232C Sync | Yes | |
| SW - Video Tag | Yes (4) | |
| SW - Rotation - External Input Rotation | Yes | |
| SW - Tile Mode Setting | Yes | |
| SW - SNMP | Yes | |
| SW - Auto Set ID | Yes | |
| SW - Control Manager | Yes | |
| SW - Power - PM mode | Yes | |
| SW - HDMI-CEC | Yes | |
| SW - Pro:Idiom | Yes | |
| HW - Sensor - Temperature Sensor | Yes | |
| SW - webOS ver. | webOS4.0 | |
| SW - Embedded CMS - Group Manager | Yes | |
| SW - Fail over | Yes | |
| SW - Sync Mode - Local Network Sync | Yes | |
| SW - Rotation - Screen Rotation | Yes | |
| SW - Gapless Playback | Yes | |
| SW - Setting Data Cloning | Yes | |
| SW - ISM Method | Yes | |
| SW - Status Mailing | Yes | |
| SW - 3rd Party Compatibility - Crestron Inside | Yes | |
| SW - Power - Wake on LAN | Yes | |
| SW - SI Server Setting | Yes | |
| ENVIRONMENT CONDITIONS | ||
| Operation Temperature | 0°C to 40°C | |
| Operation Humidity | 10 % to 80 % | |
| POWER | ||
| Power Supply | AC 100-240V~, 50/60Hz | |
| Power Type | Built-In Power | |
| POWER CONSUMPTION | ||
| Typ. | 309 W | |
| BTU (British Thermal Unit) | 1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max) | |
| Max. | 318 W | |
