PANEL | ||
---|---|---|
Screen Size | 55" | |
Brightness(Module, Typ., cd/m²) | 500 | |
Native Resolution | 1,920 x 1,080 (FHD) | |
Orientation | Landscape & Portrait | |
CONNECTIVITY | ||
Input | HDMI, DP, DVI, RGB, Audio, USB | |
Output | DP, Audio | |
External Control | RS232C In/Out, RJ45 In, IR Reciever | |
PHYSICAL SPECIFICATION | ||
Bezel Width | 2.25 mm (L/T) / 1.25 mm (R/B) | |
Weight (Head) | 23 kg | |
Packed Weight | 30.5 kg | |
VESA™ Standard Mount Interface | 600 x 400 mm | |
Monitor Dimension (W x H x D) | 1,213.4 x 684.2 x 88.5 mm | |
Carton Dimensions (W x H x D) | 1,337 x 828 x 239 mm | |
Handle | Yes | |
ENVIRONMENT CONDITIONS | ||
Operation Temperature | 0°C to 40°C | |
Operation Humidity | 10 % to 80 % | |
POWER CONSUMPTION | ||
Typ. | 160 W | |
Smart Energy Saving | 130 W | |
Max | 230 W | |
STANDARD(CERTIFICATION) | ||
Safety | UL / cUL / CB / TUV / KC | |
ErP / Energy Star | NA / Yes (Energy Star 7.0) | |
EMC | FCC Class "A" / CE / KCC | |
MEDIA PLAYER COMPATIBILITY | ||
OPS type compatible | No | |
External Media player Attachable | Yes | |
SOFTWARE COMPATIBILITY | ||

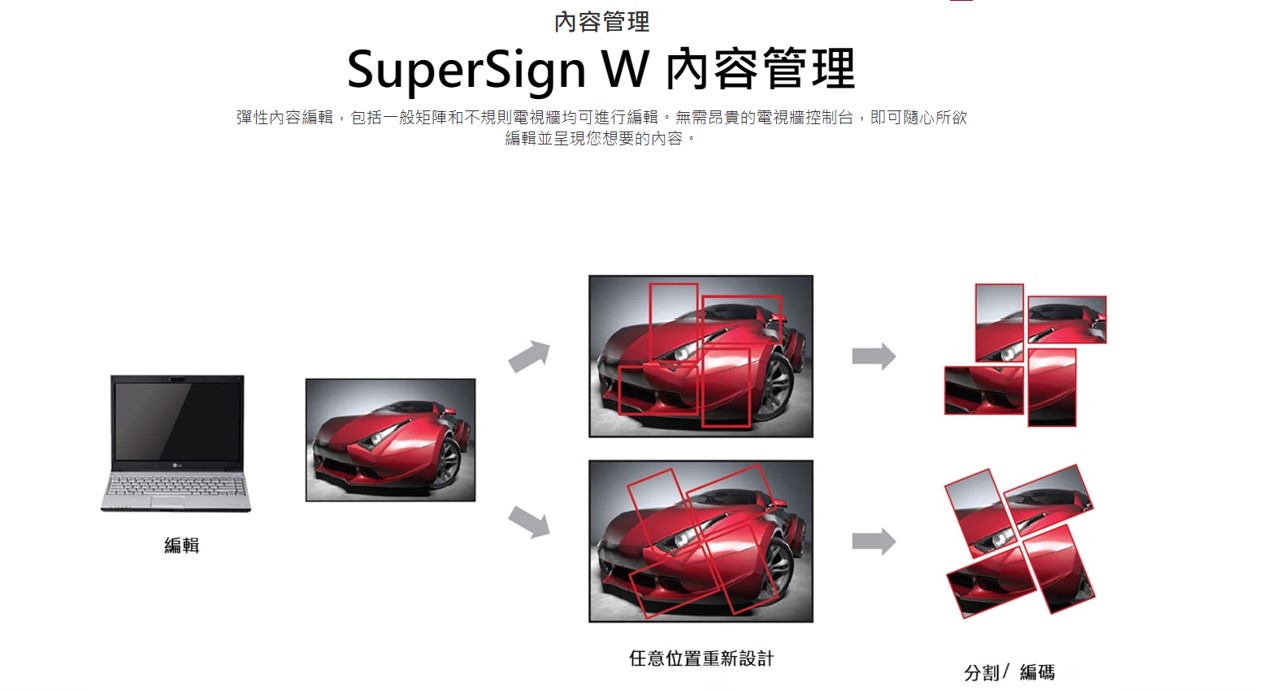

Content Management Software | SuperSign W | |
Control and Monitoring Software | SuperSign C | |
ACCESSORY | ||
Basic | Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw | |
Optional | WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20) |
