首頁產品投影鏡頭 Panasonic鏡頭 ET-DLE020 超短焦變焦鏡頭

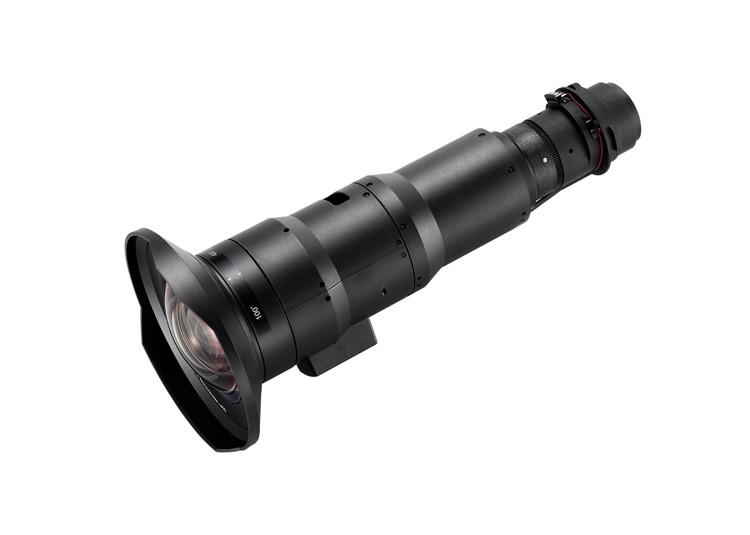

ET-DLE020 超短焦變焦鏡頭(圖)

ET-DLE020

ET-DLE020 超短焦變焦鏡頭

世界上第一款* 超短焦變焦鏡頭可輕鬆安裝在狹窄的展覽空間中

歡迎來電 03-4222385 洽詢

易於安裝的卓越靈活性

連續運行的高可靠性

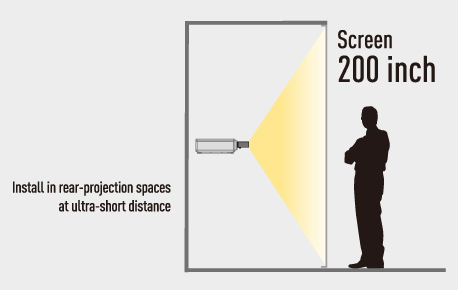

同軸背投

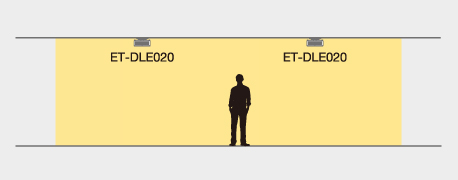

多屏投影的零偏移和靈活設置

※本產品內容皆出於Panasonic官方網站，如有變更請以Panasonic原廠官網為主.

※本網站所提供產品規格內容如有變更，恕不另行通知。實際請以Panasonic官方最新公告資訊為主。

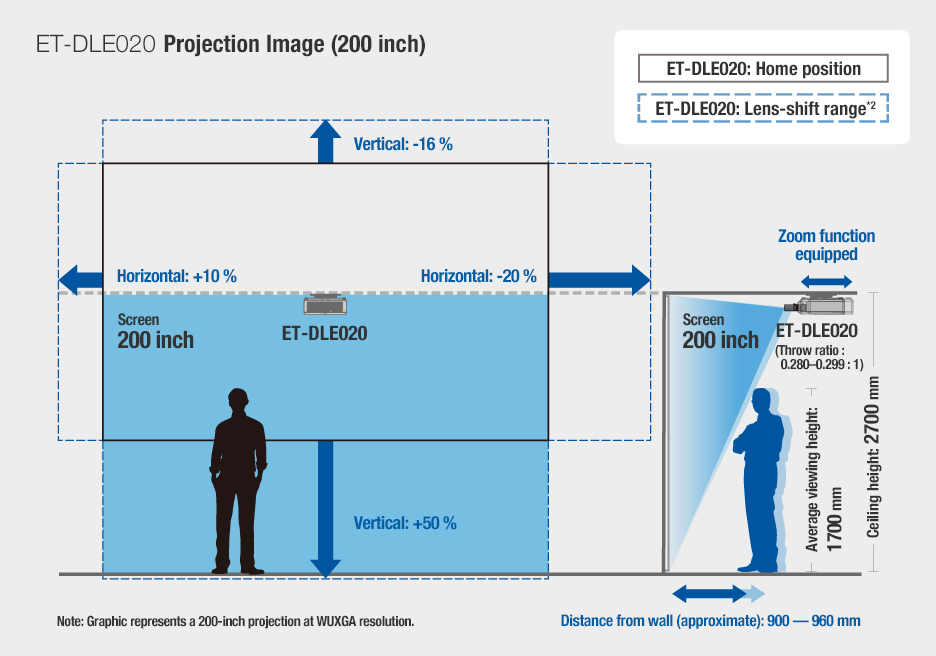

Lens-shift^*1
型號		ET-DLE020
Lens type		Ultra-Short-Throw Zoom Lens
F value		2.0
Focal length (f)		4.1–4.4 mm (5/32–11/64 inches)
Screen size		100–400 inches
Throw ratio
WUXGA		0.280–0.299:1
WXGA		0.294–0.314:1
XGA		0.290–0.309:1
Vertical		+50 % – -16 %
Horizontal		+10 % – -20 %
Zoom		Yes
Dimensions (W x H x D)		170 x 170 x 391 mm (6 11/16˝ x 6 11/16˝ x 15 13/32˝)
Weight		Approx. 3.2 kg (7.05 lbs)
Applicable projectors^*2		PT-RZ990 / PT-RZ890 / PT-RZ790 / PT-RZ690 / PT-RCQ10 / PT-RCQ80 / PT-RZ120 / PT-RZ970 / PT-RW930 / PT-RX110 / PT-RZ870 / PT-RZ770 / PT-RW730 / PT-RZ660 / PT-RW620
1 Value is for ceiling installations at WUXGA resolution. Lens-shift value will vary by model. Please see the Throw Distance Calculator for more information. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value. 2 Please use this product with the included lens-bracket attachment.
